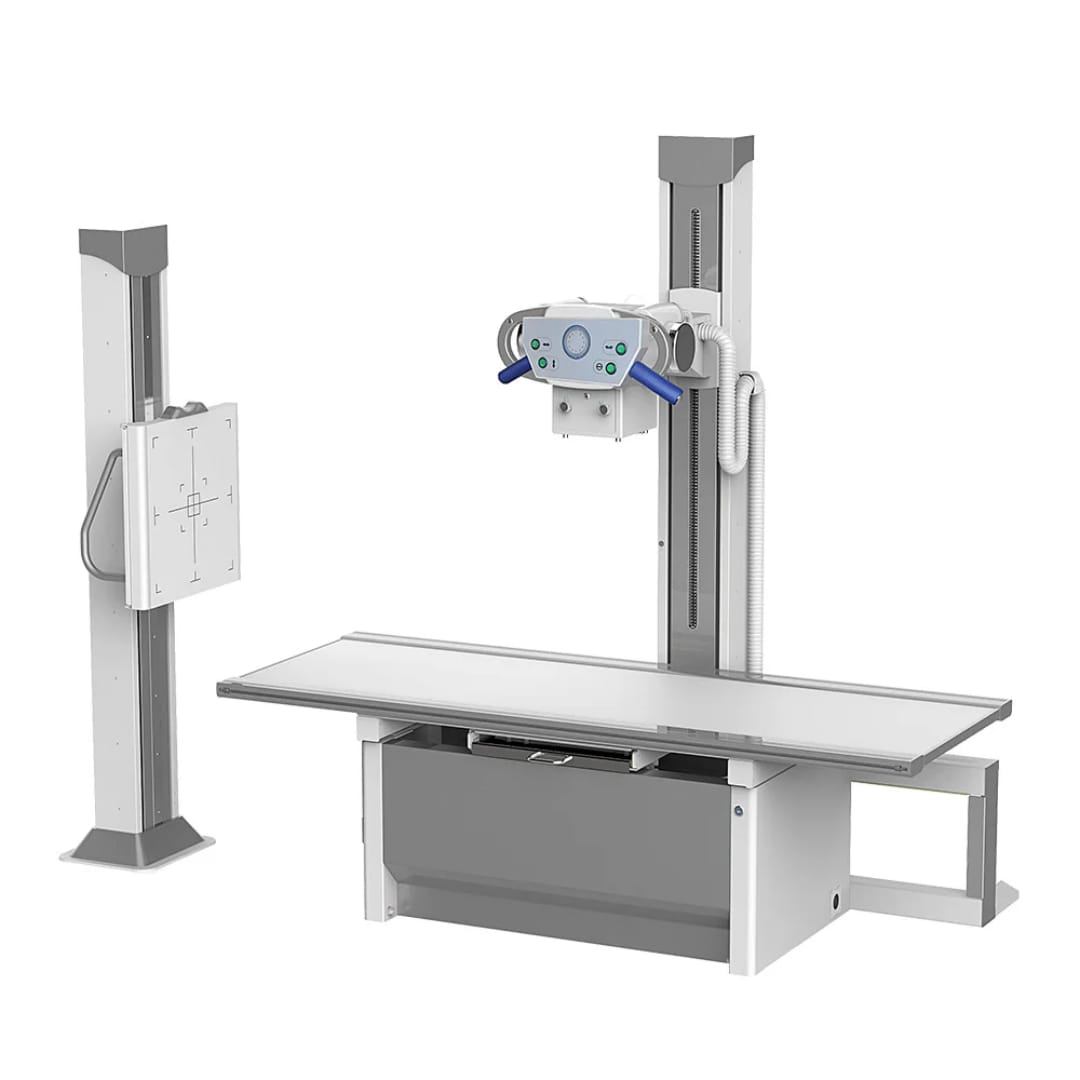

Analogue xray machine

High Quality Custom High Accuracy X-Ray Inspection Equipment Radiogy Diagnostic X-Ray Inspection Equipment Machine
Technical Specification
Parameter
YSF32
Max.kW
32KW
Power Supply
5OHZ. 60HZ wire diameter>4mm2, internal resistance-<0.50,32kw(220v b80v=””>
mA
10~400
mAS
0.1~320
KV
40-125kV, stepping by 1kV
Exposure Time
0.001-10s adjustable: stepping by 1ms
Focus
Dual focus: 1.0*1.0mm/2.0*2.0mm
Rotating Speed & Heat Capacity
2800prm/130OKHU
Inverter Frequency
50KHZ-220KHZ
Tube Movement
Up & down lift, left & right rotation
Column
Left & right movable
Radiography Table
Four-way floating
Flot Panel Detector
Amorphous silicon cesium iodide
Detector Size
17*17 inch
Pixel Resolution
3072*3072
Pixel Pitch
139um
A/D Conversion
16bits
Spatial Resolution
3.6lp/mm
Size
460*460*15mm
Interface
Wired (Wireless is optional)
Software
Professional medical software with multi-anguages available
Workstation
Intel i5 CPU, 8G memory. 2G card,128G SSD, PCFE, R232,22.5 inch display Other options are available upon
